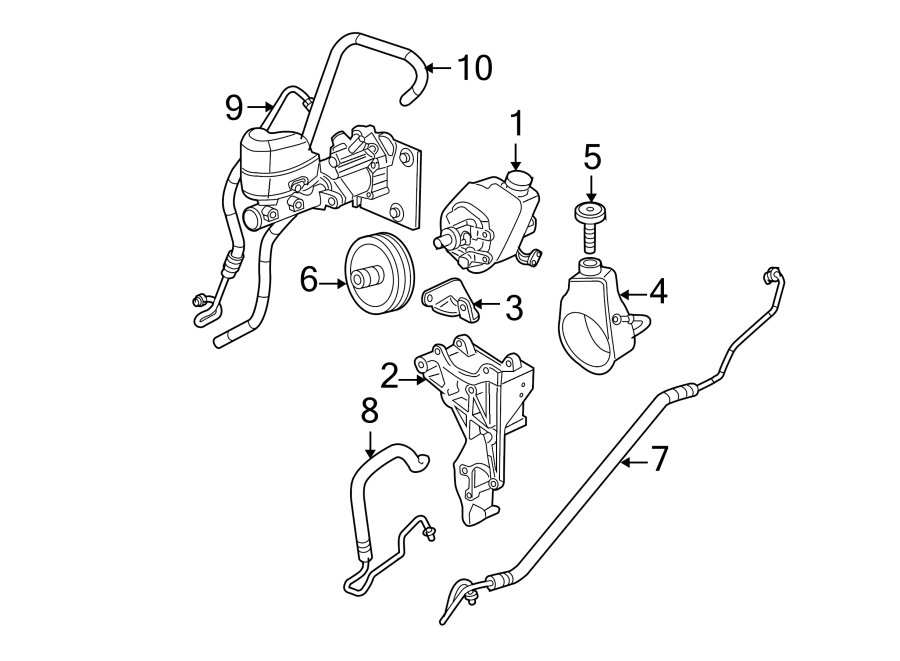

2007 Chevy Silverado Power Steering Hose Diagram

Alright, let's dive into the power steering system of a 2007 Chevy Silverado, specifically focusing on the power steering hose diagram. Whether you're tackling a leaky hose, upgrading components, or just want a better understanding of how your truck's steering works, this diagram is your roadmap. It's going to help you diagnose problems faster, avoid costly mistakes, and get the job done right. I've seen too many DIYers get tangled in a mess of hoses without a proper guide, so consider this your preventative maintenance!

Purpose of the Power Steering Hose Diagram

Why is this diagram so important? Well, consider this: the power steering system relies on hydraulic pressure to assist your steering. Without a clear understanding of how the hoses are routed and connected, you're essentially working blind. The diagram serves several crucial purposes:

Repair and Replacement: The most common use is for identifying and replacing leaking or damaged power steering hoses. The diagram pinpoints the exact hose you need and its precise routing.
System Understanding: It provides a visual representation of the entire power steering system, allowing you to understand how the pump, reservoir, steering gear, and cooler (if equipped) work together.
Troubleshooting: When experiencing power steering issues, the diagram helps you trace the flow of fluid and identify potential problem areas like blockages, leaks, or faulty components.
Upgrades and Modifications: If you're planning on upgrading your power steering pump, cooler, or even swapping in a different steering gear, the diagram is essential for ensuring proper compatibility and hose routing.

Key Specs and Main Parts of the 2007 Silverado Power Steering System

Before we delve into the diagram itself, let's review the key components of your 2007 Silverado's power steering system:

Power Steering Pump: The heart of the system, responsible for generating hydraulic pressure. The pump is typically driven by the engine's serpentine belt.
Power Steering Reservoir: A container that holds the power steering fluid. It usually has a filter integrated to keep the fluid clean.
High-Pressure Hose (Pressure Line): This hose carries high-pressure fluid from the pump to the steering gear. It's usually reinforced with braided steel to withstand the pressure.
Low-Pressure Hose (Return Line): This hose returns the fluid from the steering gear back to the reservoir. It experiences lower pressure than the high-pressure hose.
Power Steering Cooler (if equipped): Some models, especially those used for towing, have a cooler to dissipate heat from the power steering fluid. It's typically located in front of the radiator.
Steering Gear (or Steering Rack): The component that translates the rotational motion of the steering wheel into linear motion to turn the wheels. On the 2007 Silverado, it's typically a recirculating ball type steering gear.

Key specifications to keep in mind often revolve around the type of power steering fluid your Silverado requires. Always refer to your owner's manual, but typically, GM vehicles around that era use GM power steering fluid. Using the wrong fluid can damage the pump and seals.

Decoding the Symbols on the Diagram

The power steering hose diagram uses standardized symbols to represent different components and connections. Here's a breakdown of what you might encounter:

Solid Lines: Represent hoses or fluid lines. Thicker lines typically indicate the high-pressure hose.
Dotted Lines: May represent vacuum lines or control signals related to the power steering system (less common in basic hose diagrams).
Arrows: Indicate the direction of fluid flow. Very important to note the direction of flow for troubleshooting
Rectangles or Squares: Typically represent components like the power steering pump, reservoir, or cooler.
Circles: Can represent fittings, connectors, or pressure sensors.
Color Coding: Some diagrams use color coding to differentiate between high-pressure and low-pressure lines (e.g., red for high-pressure, blue for low-pressure). However, don't rely solely on color, as this can vary.

The diagram will also typically include labels identifying each component and hose. Pay close attention to these labels, as they're crucial for identifying the correct part when ordering replacements. Look for part numbers, often printed near the component label on the diagram.

How the Power Steering System Works

Here's a simplified explanation of how the system functions:

The engine drives the power steering pump.
The pump draws fluid from the reservoir and pressurizes it.
The high-pressure hose carries the pressurized fluid to the steering gear.
When you turn the steering wheel, valves within the steering gear direct the pressurized fluid to assist the steering effort. The pressure helps move the steering linkage, making it easier to turn the wheels.
The low-pressure hose returns the fluid from the steering gear back to the reservoir.
If equipped, the fluid passes through the power steering cooler before returning to the reservoir to dissipate heat.

Real-World Use: Basic Troubleshooting Tips

Here's how the diagram can help you diagnose common power steering problems:

Power Steering Fluid Leaks: Use the diagram to trace the path of the hoses and identify potential leak locations. Look for wet spots, drips, or signs of fluid accumulation around the pump, hoses, connections, and steering gear. The diagram helps you pinpoint the specific hose or fitting that's leaking.
No Power Steering Assist: If you're experiencing difficulty steering, check the fluid level in the reservoir first. If the fluid level is low, add fluid according to your owner’s manual. Refer to the diagram to check for kinks, blockages, or damage to the hoses. A failing power steering pump can also cause this issue.
Noisy Power Steering Pump: A whining or groaning noise from the power steering pump can indicate low fluid level, air in the system, or a failing pump. Check the reservoir level. Use the diagram to check for leaks that might be introducing air into the system. If the pump is making noise even with the correct fluid level, it may need to be replaced.
Hard Steering: Hard steering means you have to apply a lot of effort to turn the wheel. With the hose diagram, you can inspect for crimped or blocked hoses, which would restrict the flow of fluid. Inspect the steering gear for any signs of damage or binding.

Safety Considerations

Working on the power steering system involves handling pressurized fluids and rotating engine components. Keep these safety points in mind:

High Pressure: The high-pressure hose carries fluid at extremely high pressure. Never disconnect a high-pressure hose while the engine is running. Depressurize the system before disconnecting any hoses.
Hot Fluid: Power steering fluid can get very hot. Allow the system to cool down before working on it to avoid burns.
Rotating Components: Be extremely careful around the serpentine belt and other rotating engine components. Keep your hands and tools clear of these areas. Disconnect the negative battery terminal before working on any electrical components related to the power steering system.
Eye Protection: Wear safety glasses to protect your eyes from splashing fluid.
Proper Disposal: Dispose of used power steering fluid properly according to local regulations. It's harmful to the environment.

By using the power steering hose diagram in conjunction with these safety precautions and troubleshooting tips, you can confidently tackle power steering repairs and maintenance on your 2007 Chevy Silverado.
