2011 Honda Cr-v Serpentine Belt Diagram

The serpentine belt in your 2011 Honda CR-V is a critical component responsible for powering several essential accessories. Understanding its routing, tension, and overall health is paramount for preventative maintenance and timely repairs. This article will provide a comprehensive guide to the 2011 Honda CR-V serpentine belt diagram, enabling you to confidently tackle belt-related tasks.

Purpose of the Serpentine Belt Diagram

The serpentine belt diagram is your roadmap for understanding how the belt is routed around the various pulleys in your engine bay. It's invaluable for:

Replacement: If your belt snaps or needs replacement due to wear, the diagram ensures you reinstall the new belt correctly. Incorrect routing can lead to accessory malfunctions or even engine damage.
Troubleshooting: A squealing or slipping belt can indicate various problems, from a worn belt to a failing accessory. The diagram helps you visually inspect the belt's condition and alignment with each pulley.
Preventative Maintenance: Regular inspections using the diagram can help you identify potential issues before they become major problems.
Accessory Repair/Replacement: When replacing components like the alternator or power steering pump, knowing the belt routing is essential for disconnecting and reattaching the belt correctly.

Key Specs and Main Parts

The 2011 Honda CR-V typically uses a single serpentine belt to drive the following accessories:

Crankshaft Pulley: This is the primary driver, connected directly to the engine's crankshaft. It's the largest pulley in the system.
Alternator Pulley: The alternator generates electrical power for the vehicle. A faulty alternator can cause a squealing sound at the pulley.
Power Steering Pump Pulley: This pulley drives the power steering pump, providing hydraulic assistance for steering.
Air Conditioning (A/C) Compressor Pulley: The A/C compressor circulates refrigerant for cooling.
Idler Pulley(s): These pulleys provide additional belt support and routing. They are smooth and often made of plastic or metal.
Tensioner Pulley: The tensioner is a spring-loaded mechanism that maintains the correct tension on the serpentine belt. It's crucial for proper belt function and accessory performance. This is one of the most important parts to inspect for wear. A failed tensioner can cause the belt to slip and damage the driven accessories.

The 2011 Honda CR-V's engine is a 2.4L inline-4 (K24Z1 engine). The specific length of the serpentine belt can vary slightly based on trim and specific accessory configurations, but it's usually in the range of 75-80 inches. Always verify the correct part number for your specific vehicle using your VIN (Vehicle Identification Number) at a reputable parts retailer.

Understanding Symbols on the Diagram

Serpentine belt diagrams use a simple visual language. Here's what you need to know:

Solid Lines: Indicate the path of the serpentine belt. Follow these lines precisely when routing the belt.
Arrows: Show the direction of belt travel around each pulley. This is critical for understanding the belt's orientation.
Circles: Represent pulleys. The size of the circle may (but not always) roughly correspond to the pulley's actual size.
Labels: Each pulley is usually labeled with an abbreviation indicating its function (e.g., ALT for alternator, P/S for power steering, A/C for air conditioning, CRANK for crankshaft, TENSIONER or IDLER).
Routing Variations: Some diagrams may include dashed lines or alternate routing paths. This indicates that the belt can be routed in different ways depending on the engine configuration or if an accessory is not present. However, this is less common on the CR-V as it generally has a standard accessory layout.

How It Works: The Serpentine Belt's Role

The serpentine belt transmits rotational power from the crankshaft to the various accessories. As the engine runs, the crankshaft pulley turns, driving the belt. The belt, in turn, rotates the pulleys of the alternator, power steering pump, and A/C compressor. The tensioner pulley ensures that the belt maintains sufficient grip on each pulley to prevent slipping. A slipping belt will create a squealing sound and diminish the output of the driven accessories (e.g., dim headlights from a poorly charging alternator, or poor A/C performance).

The tensioner's spring-loaded arm constantly adjusts to compensate for belt stretch and wear. This maintains optimal tension for efficient power transfer. Over time, the tensioner can weaken or the spring can fail, leading to belt slippage. Inspecting and replacing the tensioner when replacing the belt is highly recommended.

Real-World Use: Troubleshooting Tips

Here are some common issues and how the serpentine belt diagram can help:

Squealing Noise: A squealing noise, especially when the engine is first started or under heavy load, often indicates a slipping belt. Check the belt's condition for cracks, fraying, or glazing. Also, inspect the tensioner to ensure it's applying adequate pressure. The diagram helps you quickly locate the tensioner.
Battery Light On: If the battery light illuminates on your dashboard, it could be due to a faulty alternator not being driven properly. Examine the belt's condition and routing to the alternator pulley.
Loss of Power Steering: If your steering becomes difficult, the power steering pump might not be receiving power. Inspect the belt and its routing to the power steering pump pulley.
Poor A/C Performance: Insufficient cooling could be caused by the A/C compressor not functioning correctly. Check the belt and its routing to the A/C compressor pulley.
Belt Breaks: If the belt breaks, immediately shut off the engine. Examine the belt's path for any obstructions or misalignments that may have caused the failure. Replacing the belt is straightforward using the diagram. Replacing the tensioner and idler pulleys at the same time is recommended to prevent future failures.

Safety: Important Considerations

Working around a serpentine belt involves some inherent risks:

Engine Must Be Off: Never work on the serpentine belt with the engine running. Serious injury can occur. Disconnect the negative battery terminal for added safety.
Hot Components: Allow the engine to cool down completely before working on the belt. Exhaust manifolds and other components can be extremely hot.
Moving Parts: Be aware of other moving parts in the engine bay, such as the cooling fan. Keep your hands and clothing clear of these areas.
Tensioner Tool: Use the correct tool (usually a socket or wrench fitting the tensioner arm) to relieve tension on the belt. Do not attempt to pry the belt off or force it onto the pulleys. Doing so could damage the belt or pulleys and lead to injury.
Eye Protection: Wear safety glasses to protect your eyes from debris.

Caution: The area around the crankshaft pulley is particularly risky due to its direct connection to the engine. Exercise extreme caution when working near this component.

By understanding the serpentine belt diagram and following proper safety precautions, you can confidently perform maintenance and repairs on your 2011 Honda CR-V's serpentine belt system. Remember to always consult your vehicle's repair manual for specific instructions and torque specifications.

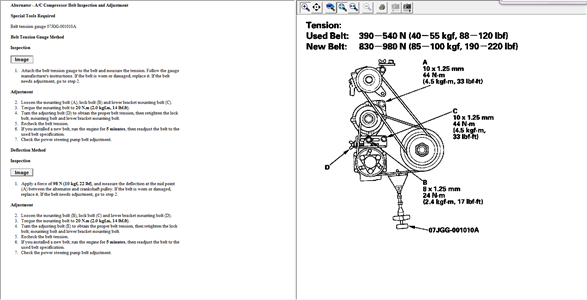

We have the 2011 Honda CR-V serpentine belt diagram available for download. It provides a clear and detailed visual representation of the belt routing for your vehicle. This diagram will greatly assist you in any serpentine belt related maintenance or repair work.
