2011 Toyota Rav4 Serpentine Belt Diagram

For the seasoned DIYer or mechanically inclined car owner tackling maintenance on a 2011 Toyota RAV4, understanding the serpentine belt system is crucial. This article serves as a comprehensive guide to the serpentine belt diagram, empowering you with the knowledge to diagnose problems, perform replacements, and ensure the long-term health of your vehicle. We'll cover everything from the diagram's purpose to troubleshooting common issues, all with the precision and detail you'd expect from a trusted mechanic.

Purpose of the Serpentine Belt Diagram

The serpentine belt diagram is more than just a pretty picture; it's a vital tool for several reasons:

Repair and Maintenance: The most obvious purpose is guiding the replacement of the serpentine belt itself. A misrouted belt can lead to serious damage to components, so accurate routing is paramount.
Troubleshooting: A diagram allows you to quickly trace the belt's path, identifying which components are driven by it. If, for example, your power steering suddenly fails, you can check the diagram to see if the power steering pump is on the serpentine belt loop.
Learning and Understanding: Even if you're not actively repairing anything, studying the diagram provides a deeper understanding of how your engine's accessories are driven and interconnected.
Preventative Maintenance: Using the diagram, you can visually inspect each component driven by the belt for any signs of wear or damage. This allows you to proactively address potential problems before they lead to complete failure.

Key Specs and Main Parts

Let's break down the critical components involved in the 2011 Toyota RAV4's serpentine belt system. Keep in mind there might be very slight differences based on the specific engine configuration (2.5L inline-4 or 3.5L V6), but the principles remain the same.

Serpentine Belt: The central component; a single, long, snaking belt that transmits rotational power from the engine's crankshaft to various accessories. Its length and rib configuration are specific to the RAV4.
Crankshaft Pulley (or Damper): Located at the bottom of the engine, this pulley is directly connected to the engine's crankshaft. It's the driving force behind the entire serpentine belt system. It often incorporates a harmonic damper to reduce torsional vibrations.
Alternator Pulley: The alternator generates electrical power for the vehicle. The serpentine belt drives the alternator, enabling it to charge the battery and power electrical systems.
Power Steering Pump Pulley: The power steering pump provides hydraulic assistance to the steering system. The serpentine belt turns this pump.
Air Conditioning Compressor Pulley: The A/C compressor is responsible for cooling the refrigerant in the air conditioning system. Its operation is dependent on the serpentine belt.
Idler Pulleys: These smooth, non-driven pulleys serve to guide the belt along its path and maintain proper tension. They can be made of metal or plastic.
Tensioner Pulley: This is a crucial component. The tensioner pulley maintains constant tension on the serpentine belt, preventing slippage and ensuring optimal performance of all driven accessories. It typically incorporates a spring-loaded mechanism or a hydraulic damper.
Water Pump Pulley: The water pump circulates coolant throughout the engine, preventing overheating. It is also often driven by the serpentine belt.

Key Specs: While belt length varies based on engine, a typical replacement interval for a serpentine belt on a 2011 RAV4 is around 60,000 to 90,000 miles. Regularly inspect the belt for cracks, fraying, or glazing. The belt's dimensions (length, width, and rib count) are crucial for proper fit and function. Consult your owner's manual or a parts catalog for the exact specifications for your specific engine.

Diagram Symbols Explained

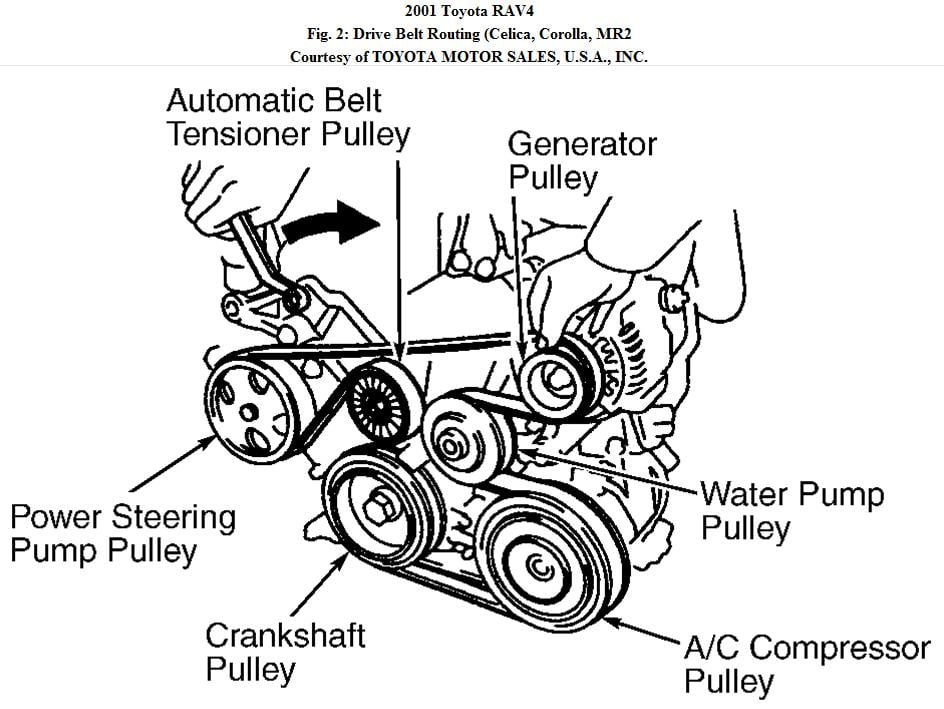

Understanding the symbols in the serpentine belt diagram is key to interpreting it correctly. The diagram uses simplified representations of the pulleys and belt path.

Solid Lines: Represent the serpentine belt itself. The thickness of the line often isn't significant.
Circles/Discs: These represent the pulleys. Different sized circles may represent different sized pulleys.
Arrows: Arrows indicate the direction of belt rotation. Pay attention to these, as incorrect routing can cause components to run backward.
Icons: Abbreviations are used to label each pulley, such as "ALT" for Alternator, "P/S" for Power Steering, "A/C" for Air Conditioning, "CRANK" for Crankshaft, "IDLER" for Idler Pulley, "TENSIONER" or "TENS" for Tensioner Pulley, and "W/P" for Water Pump.
Dotted Lines (Sometimes): Occasionally, a dotted line might indicate the back (smooth) side of the belt making contact with a pulley, rather than the ribbed side.

How It Works

The serpentine belt system is a relatively simple yet effective mechanism. The crankshaft pulley, driven by the engine's rotation, provides the initial rotational force. This force is then transmitted through the serpentine belt to each of the driven accessories (alternator, power steering pump, A/C compressor, and water pump). The tensioner pulley ensures that the belt remains taut, preventing slippage and maintaining efficient power transfer.

The routing of the belt is critical. The belt must wrap around each pulley in the correct direction to ensure that each accessory spins in the intended direction and at the correct speed. The tensioner pulley applies a constant force, keeping the belt tight against the pulleys. When the belt wears or stretches, the tensioner compensates to maintain proper tension. If the tensioner reaches the end of its travel range, or the belt becomes excessively worn, slippage will occur, leading to reduced performance or complete failure of the affected accessories.

Real-World Use: Basic Troubleshooting Tips

Here are some common serpentine belt issues and how the diagram can help you troubleshoot:

Squealing Noise: A squealing noise, especially when starting the engine or turning the steering wheel, is often a sign of a slipping serpentine belt. Use the diagram to inspect the belt's condition. Look for cracks, fraying, or glazing. Also, check the tensioner pulley to ensure it's functioning correctly and applying adequate tension. If the belt is worn, replace it. If the tensioner is weak, replace it as well.
Accessory Failure: If an accessory, such as the alternator or power steering pump, suddenly stops working, consult the diagram to verify that it's driven by the serpentine belt. Check the belt's path and ensure it's properly routed around that accessory's pulley. A broken belt will immediately disable all accessories driven by it. A slipping belt may only partially impair function, leading to low voltage from the alternator or weak power steering assist.
Visual Inspection: Regularly inspect the serpentine belt for any signs of wear or damage. Cracks, fraying, missing ribs, or glazing are all indicators that the belt needs to be replaced. Use the diagram to ensure that the belt is properly seated in all the pulleys' grooves.
Tensioner Check: Examine the tensioner pulley for smooth operation. A seized or wobbly tensioner can damage the belt and other accessories. The tensioner should move freely but with resistance (due to its spring or damper).

Safety Considerations

Working on the serpentine belt system involves inherent risks. Here are some crucial safety precautions:

Disconnect the Battery: Before working on any part of the engine, disconnect the negative battery terminal to prevent accidental electrical shocks or damage.
Hot Engine: Never work on the serpentine belt system while the engine is hot. Allow the engine to cool completely before proceeding.
Moving Parts: Never put your hands or tools near the serpentine belt while the engine is running. The rotating components can cause serious injury.
Eye Protection: Wear safety glasses to protect your eyes from debris.
Belt Tensioner Release: Be extremely careful when releasing the belt tensioner. The spring-loaded mechanism can snap back with considerable force. Use the correct size wrench or socket and apply steady pressure to release the tension. Follow the manufacturer's instructions for the specific tensioner on your RAV4.

The alternator pulley is often the most dangerous component to work near. It's directly connected to the electrical system, and accidental contact can result in electrical shock. Always disconnect the battery before working near the alternator.

By understanding the serpentine belt diagram and following these safety guidelines, you can confidently tackle serpentine belt-related maintenance and repairs on your 2011 Toyota RAV4. Remember to always consult your vehicle's repair manual for specific instructions and torque specifications.
