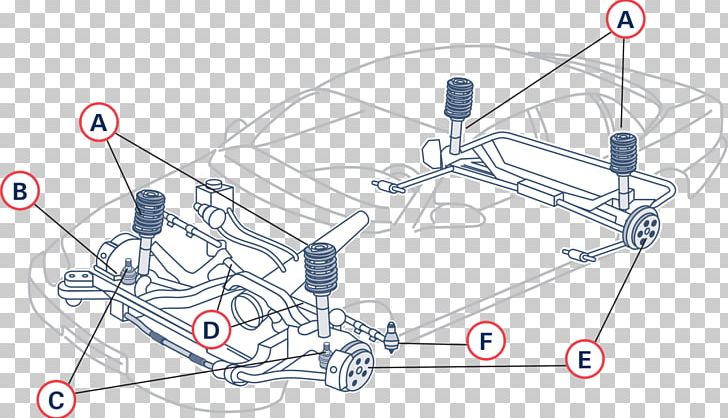

2013 Ford Escape Rear Suspension Diagram

Let's dive into the rear suspension of a 2013 Ford Escape. This article aims to give you a solid understanding of the system, empowering you to tackle repairs, modifications, or simply expand your automotive knowledge. Having a clear picture of the rear suspension layout is invaluable, whether you’re replacing worn components, diagnosing a strange noise, or planning suspension upgrades. We'll break down the diagram, explain its components, and equip you with the knowledge to work safely and effectively.

Purpose of Understanding the Rear Suspension Diagram

Why bother with a diagram? Well, a detailed diagram is your roadmap to understanding the intricacies of your Escape's rear suspension. It serves several critical purposes:

Repair and Maintenance: When replacing parts like shocks, springs, or control arms, the diagram ensures you identify the correct components and their proper locations.
Troubleshooting: Diagnosing suspension issues (e.g., clunking noises, uneven tire wear) becomes significantly easier when you can visualize the system's layout.
Modification and Upgrades: Planning suspension upgrades, such as installing lowering springs or performance shocks, requires a thorough understanding of the existing system's geometry.
General Knowledge: Even if you're not actively working on your suspension, understanding how it works enhances your overall automotive knowledge and allows you to communicate more effectively with mechanics.

Key Specs and Main Parts of the 2013 Ford Escape Rear Suspension

The 2013 Ford Escape utilizes a multi-link independent rear suspension. This design offers improved ride quality and handling compared to older, simpler designs. Here's a breakdown of the key components you'll find in the diagram:

Main Components:

Shocks (Shock Absorbers): These dampen the movement of the suspension, preventing excessive bouncing and oscillation. The diagram will usually show their attachment points on the lower control arm and the vehicle's chassis.
Coil Springs: These support the vehicle's weight and provide resistance to compression. They're typically located around the shock absorbers.
Lower Control Arms: These are the main structural links that connect the wheel hub to the vehicle's frame. The diagram will show their pivot points and attachment points for other components.
Upper Control Arms (Lateral Links): These help control wheel camber and contribute to overall stability. They connect the wheel hub to the chassis. Sometimes there are two per side.
Toe Link: This link is used to adjust the toe angle of the rear wheels, which is crucial for proper alignment and tire wear.
Stabilizer Bar (Sway Bar): This torsion bar connects the left and right sides of the suspension, reducing body roll during cornering. Its connection points to the control arms will be visible.
Wheel Hub/Bearing Assembly: This unit houses the wheel bearing and provides a mounting point for the wheel.
Knuckle/Spindle: The knuckle connects the control arms and hub assembly, allowing the wheel to pivot for steering (although the rear wheels don't steer in a standard Escape).

Key Specs:

While the diagram itself won't explicitly list specifications, it's important to be aware of the following:

Torque Specifications: All fasteners (bolts, nuts) have specific torque values. Always consult the service manual for the correct torque specifications to avoid over-tightening or under-tightening.
Alignment Specifications: Camber, toe, and caster angles need to be within specific ranges for optimal handling and tire wear. After any suspension work, a wheel alignment is highly recommended.
Spring Rates: If replacing springs, ensure the new springs have the correct spring rate for your vehicle and driving style.

Understanding the Symbols in the Diagram

Suspension diagrams use a variety of lines, colors, and icons to represent different components and connections. Here's a general guide:

Solid Lines: Typically represent structural components like control arms, shocks, and springs.
Dashed Lines: Might indicate hidden components or the path of movement.
Different Colors: Often used to differentiate between left and right side components or to highlight specific parts of the system.
Arrows: Show the direction of movement or forces (e.g., spring compression, shock damping).
Circles/Dots: Usually represent pivot points or attachment points.
Fastener Symbols: Indicate the type of fastener used (e.g., bolt, nut, clip). Pay close attention to these, as some might be torque-to-yield (TTY) bolts that need replacement after removal.

Pay close attention to the legend or key provided with the diagram, as symbol conventions can vary slightly.

How the 2013 Ford Escape Rear Suspension Works

The multi-link independent rear suspension is designed to allow each wheel to react independently to road imperfections. Here's a simplified explanation of how it works:

When a wheel encounters a bump, the suspension compresses. The coil spring absorbs the energy of the impact, while the shock absorber dampens the spring's oscillation.
The control arms allow the wheel to move vertically while maintaining its alignment. The upper control arms and toe link control camber and toe angles, respectively.
The stabilizer bar resists body roll during cornering by transferring force from one side of the suspension to the other.
The independent design ensures that the movement of one wheel doesn't significantly affect the other, resulting in a smoother ride and better handling.

Real-World Use: Basic Troubleshooting Tips

Here are a few basic troubleshooting tips you can use with the aid of the rear suspension diagram:

Clunking Noise: Check the shock absorbers, control arm bushings, and stabilizer bar links for wear or damage. Visually inspect the components for cracks, looseness, or excessive play.
Squeaking Noise: Often caused by dry or worn bushings. Lubricate the bushings with a silicone-based lubricant or replace them if necessary.
Uneven Tire Wear: Could be a sign of misalignment. Check the toe, camber, and caster angles. Also, inspect the control arms and ball joints for wear or damage.
Excessive Bouncing: Indicates worn shock absorbers. Replace the shocks in pairs for optimal performance.

Using the diagram, carefully inspect each connection point and component to pinpoint the source of the problem.

Safety Considerations

Working on suspension components can be dangerous if proper safety precautions are not taken. Here are some key safety points:

Always use jack stands: Never work under a vehicle supported only by a jack. Place jack stands under the vehicle's frame or designated jacking points.
Compress coil springs safely: If you need to remove coil springs, use a proper spring compressor. Compressed springs store a tremendous amount of energy and can cause serious injury if released suddenly. This is a particularly risky area.
Wear safety glasses: Protect your eyes from flying debris.
Disconnect the battery: Disconnecting the negative battery terminal can help prevent accidental electrical shorts.
Consult a service manual: Always refer to a service manual for specific instructions and torque specifications.
Loosen Lug Nuts First: Loosen lug nuts before lifting the vehicle.

Remember, if you're uncomfortable performing any of these tasks, it's best to consult a qualified mechanic.

Conclusion

Understanding the 2013 Ford Escape's rear suspension diagram is a valuable asset for any DIY mechanic or car enthusiast. By familiarizing yourself with the components, their functions, and potential issues, you can confidently tackle repairs, upgrades, and troubleshooting. Always prioritize safety and consult a service manual for specific instructions and torque specifications.

We have a high-resolution diagram available for download, providing a clearer visual reference for your projects. Contact us for more information to receive the file.
