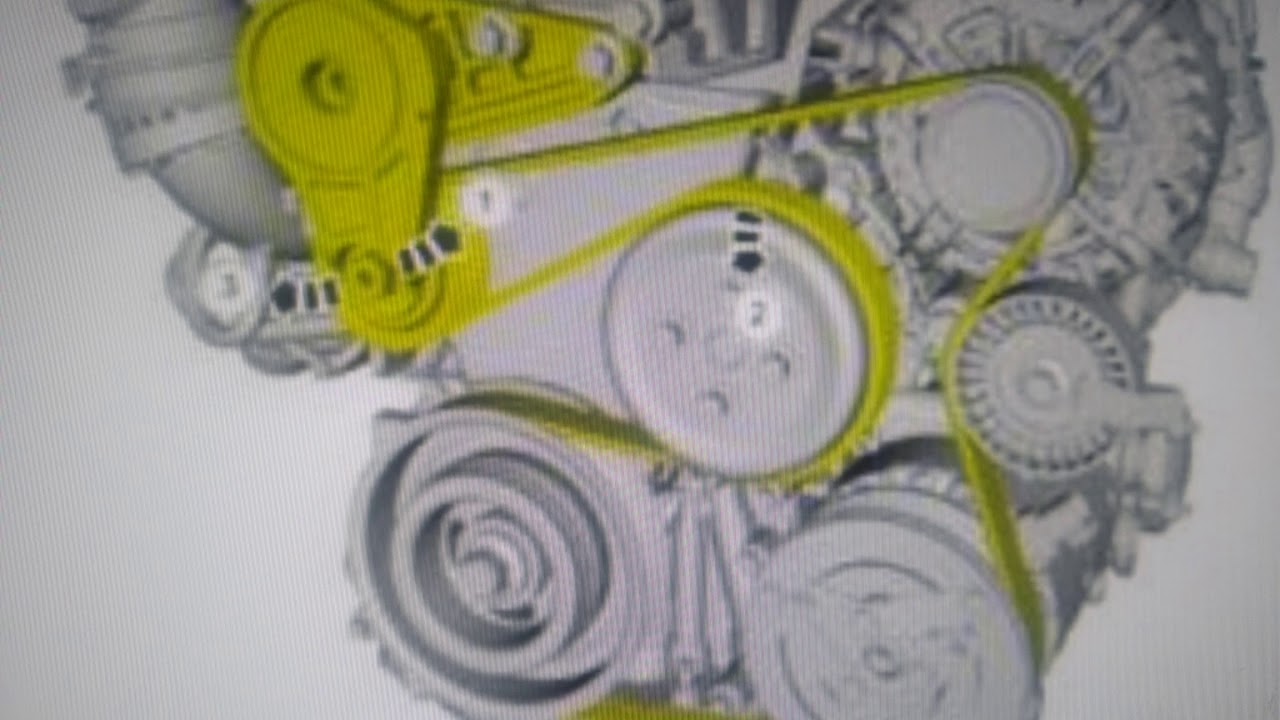

2014 Ford Escape Serpentine Belt Diagram

The 2014 Ford Escape, a popular compact SUV, relies on a single serpentine belt to drive various engine accessories. Understanding its routing is crucial for maintenance, troubleshooting, and repairs. This article will provide a detailed breakdown of the 2014 Ford Escape serpentine belt diagram, empowering you to confidently tackle related tasks.

Purpose of the Serpentine Belt Diagram

The serpentine belt diagram isn't just a pretty picture; it's an invaluable tool. Here's why you need it:

Accurate Reinstallation: Replacing a worn or broken serpentine belt requires precise routing. The diagram ensures you install the new belt correctly, preventing accessory malfunctions and potential engine damage.
Troubleshooting: If an accessory isn't working (e.g., no power steering, no A/C), the diagram helps you trace the belt's path to identify potential problems like a slipped belt or a seized component.
Preventive Maintenance: Regularly inspecting the belt's condition and its routing based on the diagram can help you identify issues before they escalate into costly repairs.
Learning and Modification: For those interested in engine modifications or simply understanding how their vehicle works, the diagram provides a clear visual representation of the accessory drive system.

Key Specs and Main Parts

The 2014 Ford Escape came with several engine options, impacting the serpentine belt routing. The most common engines were:

2.5L Duratec I4: This naturally aspirated engine typically uses a slightly different belt routing than the turbocharged engines.
1.6L EcoBoost I4: A turbocharged engine with a unique belt path to accommodate the different accessory layout.
2.0L EcoBoost I4: Another turbocharged engine, often featuring a distinct routing compared to the 1.6L EcoBoost.

Regardless of the engine, the serpentine belt system connects these key components:

Crankshaft Pulley: The engine's rotational force is transferred to the belt via the crankshaft pulley.
Alternator: The alternator generates electricity to power the vehicle's electrical system and charge the battery.
Power Steering Pump: Provides hydraulic pressure for power-assisted steering.
Air Conditioning Compressor: Compresses refrigerant to provide cool air to the cabin.
Water Pump: Circulates coolant throughout the engine to prevent overheating. Note: On some engines, the water pump might be driven by the timing belt instead of the serpentine belt. Always confirm!
Idler Pulley(s): Smooth, non-driven pulleys that guide the belt and maintain proper tension.
Tensioner Pulley: A spring-loaded pulley that automatically adjusts to maintain the correct belt tension, compensating for wear and thermal expansion. The tensioner is a critical component.

The serpentine belt itself is typically made of a reinforced rubber compound, designed for high strength and durability. Belt length is crucial; using the wrong length can lead to improper tension and accessory failure.

Understanding Diagram Symbols

Serpentine belt diagrams use a standardized set of symbols to represent components and belt routing. Here's a breakdown:

Solid Lines: Represent the path of the serpentine belt. The thickness of the line might indicate the belt's width, but this is not always consistent.
Pulleys: Represented by circles or ovals. Some diagrams might label each pulley with an abbreviation (e.g., ALT for alternator, P/S for power steering).
Arrows: Indicate the direction of belt rotation. Pay close attention to these, as incorrect routing can cause accessories to run backward or not at all.
Tensioner: Usually depicted as a pulley with an arrow indicating its tensioning direction. The tensioner often includes a square boss for wrench engagement to relieve tension during belt installation or removal.
Dotted Lines: Might represent the belt's path on the backside of a pulley (smooth side contact). This helps visualize how the belt wraps around components.
Color Coding: While not always present, some diagrams use colors to differentiate between different sections of the belt path or to highlight specific components. The key will explain the color codes.

How It Works

The serpentine belt system is a relatively simple but crucial part of the engine. The crankshaft pulley, driven directly by the engine, acts as the primary driver. As it rotates, it turns the serpentine belt, which in turn drives all the other pulleys connected to the engine accessories. The tensioner ensures the belt maintains adequate grip on each pulley, preventing slippage. Without sufficient tension, the accessories won't function correctly.

The order in which the belt routes around the pulleys is essential. The diagram dictates the correct path to ensure each accessory receives the necessary rotational force at the correct speed. Incorrect routing can lead to:

Accessory malfunction (e.g., weak A/C, no power steering).
Belt slippage, leading to noise and reduced accessory performance.
Premature belt wear or failure.

Real-World Use and Troubleshooting

Here's how you can use the serpentine belt diagram for troubleshooting:

Squealing Noise: A common symptom of a worn or loose serpentine belt. Check the belt tension and condition. Use the diagram to ensure the belt is routed correctly and that the tensioner is functioning properly. A glazed or cracked belt needs replacing.
Accessory Failure: If an accessory stops working, use the diagram to trace the belt's path to that component. Check if the belt is still on the pulley and if the pulley is spinning freely. If the pulley is seized, the accessory needs repair or replacement.
Belt Slippage: Often caused by a loose belt or a worn pulley. Refer to the diagram to verify the correct belt routing and tension. Inspect the pulleys for wear or damage.
Visual Inspection: Regularly inspect the serpentine belt for cracks, fraying, glazing, or missing chunks. Compare the belt's condition to the diagram to identify potential wear points or misalignment.

Important Note: Before replacing the serpentine belt, make a sketch or take a picture of the existing belt routing. This provides a backup in case the diagram is unclear or unavailable. For the 2014 Ford Escape, there may be a sticker under the hood displaying the correct routing. Always double-check!

Safety Considerations

Working around a serpentine belt system can be dangerous. Here are some safety precautions:

Disconnect the Battery: Always disconnect the negative battery cable before working on the serpentine belt system. This prevents accidental starting of the engine.
Hot Engine: Never work on the serpentine belt system while the engine is hot. Allow the engine to cool completely.
Moving Parts: Keep your hands, clothing, and tools clear of the serpentine belt and pulleys when the engine is running. A spinning serpentine belt can cause serious injury.
Tensioner Release: Be careful when releasing the tension on the serpentine belt tensioner. The tensioner is spring-loaded and can snap back forcefully. Use the correct tool and technique to control the tensioner's movement.
Eye Protection: Wear safety glasses to protect your eyes from debris.

The alternator is a particularly risky component because it's connected directly to the vehicle's electrical system. Accidental contact with the alternator's terminals while the battery is connected can result in a short circuit or electric shock.
