2014 Kia Sportage Serpentine Belt Diagram

Understanding the serpentine belt system in your 2014 Kia Sportage is crucial for maintaining its performance and preventing breakdowns. This article provides a detailed guide to the serpentine belt diagram, empowering you with the knowledge to diagnose issues, perform replacements, and generally understand this critical engine component.

Purpose of the Serpentine Belt Diagram

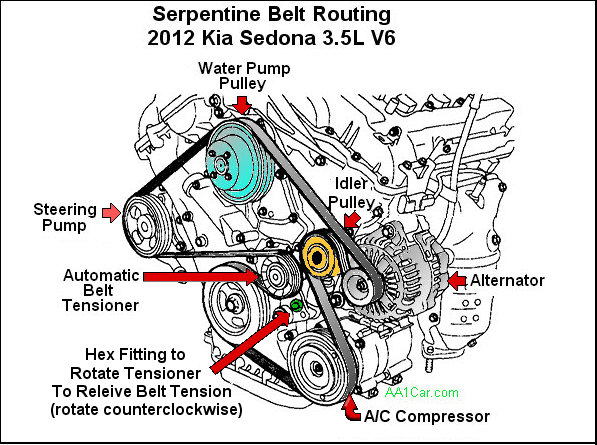

The serpentine belt diagram is your roadmap to understanding how the serpentine belt snakes its way around the various pulleys in your engine. It's not just a pretty picture; it's an invaluable tool for:

Repairs and Maintenance: Identifying the correct belt routing is essential when replacing a worn or broken belt. A misrouted belt can damage components and lead to system failure.
Troubleshooting: The diagram helps pinpoint the components driven by the belt. If, for example, your power steering isn't working, the diagram will show you if the serpentine belt drives the power steering pump.
Learning Engine Mechanics: Studying the diagram allows you to understand the relationship between different engine accessories and how they function together.
Preventative Maintenance: Knowing the belt's path helps you inspect all the pulleys and accessories for signs of wear or misalignment.

Key Specs and Main Parts (2014 Kia Sportage)

The 2014 Kia Sportage typically comes with one of two engines: a 2.0L inline-4 (G4KD or G4NA) and a 2.4L inline-4 (G4KE). While the specific routing might vary slightly between these engines and even between different model years due to subtle accessory placement changes, the core components and principles remain the same.

Main Components:

Serpentine Belt: The long, continuous belt responsible for transferring power from the engine's crankshaft to various accessories.
Crankshaft Pulley (Harmonic Balancer): The pulley connected to the crankshaft, driven directly by the engine. It's often called the harmonic balancer because it also dampens engine vibrations.
Alternator Pulley: The alternator generates electricity to power the car's electrical system and charge the battery.
Power Steering Pump Pulley: The power steering pump provides hydraulic pressure to assist with steering.
Air Conditioning Compressor Pulley: The A/C compressor circulates refrigerant in the air conditioning system.
Water Pump Pulley: The water pump circulates coolant through the engine to prevent overheating.
Tensioner Pulley: An automatic or manual tensioner that maintains the correct tension on the serpentine belt. Proper tension is critical for optimal performance and belt longevity.
Idler Pulley(s): Smooth pulleys used to guide the belt around other components and optimize its wrap angle (the amount of contact the belt has with each pulley).

Belt Length: The 2014 Kia Sportage (depending on engine and options) typically uses a serpentine belt that ranges in length, but most are between 80 and 90 inches. However, *always* verify the correct belt length for your specific engine and accessory configuration using your VIN or a reputable parts catalog. Using the wrong belt length will lead to problems.

Understanding the Serpentine Belt Diagram Symbols

Serpentine belt diagrams aren't complex, but understanding the symbols will make interpretation easier.

Solid Lines: Represent the portion of the belt that is in contact with the pulleys, transferring power.
Dashed Lines: Indicate the back of the belt (the smooth side) running against a pulley. This generally means that pulley is an idler pulley and not driven.
Arrows: Show the direction of belt travel. Follow the arrows to trace the belt's path.
Component Icons: Simplified drawings of the various components (alternator, power steering pump, etc.) are labeled with abbreviations or the full component name.
Tensioner Indication: The tensioner pulley is usually clearly marked, often with an arrow indicating the direction of tension release when using a wrench to relieve the belt tension.

How It Works: Power Transmission

The serpentine belt system's core function is to transfer rotational power from the engine's crankshaft to various accessories. Here's how it works:

The engine's crankshaft rotates, driving the crankshaft pulley.
The serpentine belt is wrapped tightly around the crankshaft pulley. As the pulley rotates, it pulls the belt along with it.
The belt then drives the pulleys of the other accessories, such as the alternator, power steering pump, A/C compressor, and water pump.
The tensioner pulley maintains the proper tension on the belt, preventing slippage and ensuring efficient power transfer.
Idler pulleys help guide the belt around tight corners and increase the wrap angle on smaller pulleys, improving grip.

The amount of power required by each accessory varies. For instance, the A/C compressor requires more power when it's actively cooling the cabin, which puts more load on the engine and the serpentine belt.

Real-World Use and Basic Troubleshooting Tips

Here are a few troubleshooting tips when working with your serpentine belt system:

Squealing Noise: A common symptom of a worn or loose belt. Check the belt tension and condition. A glazed belt (shiny and hard) indicates slippage and needs replacement.
Cracked or Frayed Belt: Visual inspection is key. Cracks and frayed edges indicate wear and impending failure. Replace the belt immediately.
Accessory Malfunction: If an accessory (e.g., power steering) stops working, check the belt's condition and routing. A broken belt will obviously disable all driven accessories.
Check Belt Routing After Replacement: Double-check the belt routing against the diagram after installing a new belt. A misrouted belt will cause immediate problems and can damage components.
Tensioner Issues: A failing tensioner can cause belt slippage and premature wear. Check for excessive play or binding in the tensioner pulley.

Safety Considerations

Working with the serpentine belt system involves potential hazards. Always observe the following safety precautions:

Disconnect the Negative Battery Terminal: Before working on the serpentine belt, disconnect the negative battery terminal to prevent accidental starting of the engine.
Hot Engine: Never work on the serpentine belt when the engine is hot. Allow the engine to cool down completely to avoid burns.
Moving Parts: Keep your hands and clothing away from the serpentine belt and pulleys when the engine is running. The rotating parts can cause serious injury.
Tensioner Springs: Be aware that the tensioner pulley is spring-loaded. When releasing the tension, use the correct tool and maintain a firm grip to prevent the tensioner from snapping back forcefully.
Eye Protection: Wear safety glasses to protect your eyes from debris.

The crankshaft pulley is a heavy component rotating at high speed. Exercise extreme caution around this area.

Replacing the serpentine belt is a task that many DIYers can accomplish with basic tools and some mechanical knowledge. However, if you're uncomfortable working on your car, it's always best to consult a qualified mechanic.

We have the 2014 Kia Sportage Serpentine Belt Diagram file, including diagrams for both the 2.0L and 2.4L engines. You can download it using the link provided [hypothetical download link would be here]. This diagram will be invaluable for performing maintenance and repairs on your vehicle.
