3 Speed Box Fan Switch Wiring Diagram

Let's dive into the wiring of a 3-speed box fan switch. Understanding this seemingly simple system can be surprisingly useful, not only for repairing a broken fan but also for learning basic electrical circuit concepts. This guide is aimed at the DIY enthusiast comfortable with basic electrical work, providing a clear and concise explanation of the wiring diagram, its components, and how it all works together.

Why Bother with a Box Fan Switch Wiring Diagram?

Knowing how to read and understand a 3-speed box fan switch wiring diagram offers several benefits:

Troubleshooting: When your fan stops working, understanding the wiring allows you to pinpoint the problem – is it the switch, the motor, or the wiring itself?
Repair: Replacing a faulty switch is a simple repair if you know how to connect the wires correctly.
Modification: Perhaps you want to add a remote control or other feature. Knowing the wiring is essential for safe and effective modifications.
Education: Understanding the circuit of a box fan is a great stepping stone to understanding more complex electrical systems.

Key Specs and Main Parts

Before we jump into the diagram, let's identify the key components:

Power Source: Typically 120V AC (in North America). This is the voltage supplied from your wall outlet. Caution: Working with AC voltage can be dangerous. Always disconnect power before working on any electrical device.
Power Cord: Connects the fan to the power source. Contains at least two wires: Hot (carries the current) and Neutral (returns the current). Many also include a Ground wire for safety.
Switch (3-Speed): This is the heart of the speed control. It allows you to select one of three speeds or turn the fan off. Internally, it contains multiple contacts that connect different parts of the motor's windings.
Motor (AC Induction Motor): The motor uses electromagnetic induction to convert electrical energy into mechanical energy, rotating the fan blades. A shaded-pole motor is a common, simple type used in box fans. These motors utilize stator windings that have different number of turns, creating speed settings.
Capacitor (Optional): Some fans use a capacitor to improve starting torque and efficiency. It's usually connected in series with one of the motor windings.
Wiring: Connects all the components together. Commonly uses insulated copper wire.

Understanding the Symbols in the Wiring Diagram

Wiring diagrams use standard symbols to represent components and connections. Here's a breakdown of common symbols you'll encounter in a 3-speed box fan wiring diagram:

Solid Lines: Represent wires. The thicker the line, the thicker the wire is not indicated on this diagram.
Circles: Usually represent connection points or terminals.
Switch Symbol: A lever or toggle connecting to different points. The specific symbol may vary slightly depending on the diagram. The numbers next to switch terminals usually represent the wire connections on the physical switch.
Motor Symbol: A stylized circle with an 'M' inside, representing the motor. The terminals connected to the motor windings may be labeled L, M, H (Low, Medium, High) or 1, 2, 3.
Capacitor Symbol: Two parallel lines (sometimes curved), representing the capacitor.
Color Codes: Wiring diagrams often use color codes to identify wires. Common colors include:
- Black: Hot (Live) wire
- White: Neutral wire
- Green (or Bare): Ground wire

How It Works: The Flow of Electricity

The 3-speed box fan works by controlling the voltage and current supplied to the motor windings. The switch acts as a selector, connecting the power source to different taps on the motor winding. Here's a simplified explanation:

Power In: The AC voltage enters the fan through the power cord.
Switch Selection:
- Off: The switch disconnects the power from the motor entirely.
- Low Speed: The switch directs the power through a portion of the motor winding. The winding acts as a load, reducing the voltage and current supplied to the motor, resulting in a lower speed.
- Medium Speed: The switch directs the power through a smaller portion of the motor winding compared to low speed, resulting in a higher speed.
- High Speed: The switch directs the power directly to the motor winding, providing the full voltage and current, resulting in the highest speed.
Motor Rotation: The motor converts the electrical energy into mechanical energy, rotating the fan blades and creating airflow.
Power Out (Neutral): The Neutral wire returns the current back to the power source, completing the circuit.

The 3-speed switch uses a network of resistors or, more commonly, different taps in the motor winding to regulate the current flow. When the switch is set to "high", the resistance is low (or bypassed altogether), allowing maximum current to flow and the motor to spin at its fastest. Conversely, lower speeds introduce more resistance, reducing current and speed.

Real-World Use: Basic Troubleshooting

Here are some common problems and how a wiring diagram can help:

Fan doesn't work at all:
- Check the power cord for damage.
- Use a multimeter to check if power is reaching the switch. Caution: Working with live circuits is dangerous. Use extreme caution or consult a qualified electrician.
- Check the switch for continuity. Does it make contact in any of the speed settings?
Fan only works on one speed:
- The switch is likely faulty. Use a multimeter to check if the switch is making contact for each speed setting.
Fan hums but doesn't spin:
- The motor might be seized or the capacitor (if present) might be faulty.

Example: If the fan only works on high speed, the contacts for the low and medium speeds on the switch are likely damaged or corroded. This prevents the current from flowing through the appropriate windings for those speeds.

Safety First!

Working with electricity can be dangerous. Here are some critical safety precautions:

Disconnect Power: Always disconnect the fan from the power outlet before working on it.
Use Proper Tools: Use insulated screwdrivers and pliers.
Inspect Components: Check for frayed wires, cracked insulation, or other signs of damage.
Grounding: Ensure the fan is properly grounded to prevent electric shock.
If in doubt, consult a qualified electrician: Don't attempt repairs beyond your skill level.

Specifically, the capacitor, if present, can store a charge even after the fan is unplugged. Discharge the capacitor before handling it. This can be done by carefully shorting the terminals with an insulated screwdriver (avoid touching the metal parts). AC Voltage can be present on the power cord, switch, and motor windings when plugged in and turned on.

By understanding the wiring diagram of your 3-speed box fan, you can confidently diagnose and repair common issues, saving you money and increasing your understanding of basic electrical circuits.

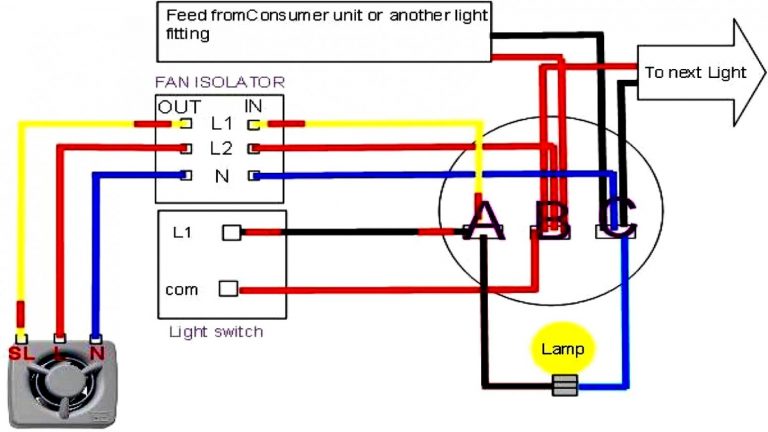

We have a detailed wiring diagram available for download. This diagram provides a clear visual representation of the connections and will be a valuable resource for your repair projects.
