Chevy Silverado Serpentine Belt Diagram

Hey there, fellow gearheads! We're diving into something crucial for keeping your Chevy Silverado running smoothly: the serpentine belt diagram. It's not just a pretty picture; it's your roadmap to understanding, maintaining, and troubleshooting the heart of your truck's accessory drive system. Whether you're tackling a repair, upgrading components, or simply want to expand your automotive know-how, mastering the serpentine belt diagram is a must. Let's get started!

Purpose of the Serpentine Belt Diagram

Why should you care about a serpentine belt diagram? Well, the serpentine belt is responsible for powering several vital accessories in your Silverado. These include:

Alternator: Charges the battery and powers the electrical system.

Power Steering Pump: Provides hydraulic assistance for steering.

Air Conditioning Compressor: Cools the cabin.

Water Pump: Circulates coolant to regulate engine temperature.

A broken or improperly routed serpentine belt can lead to serious problems. Imagine driving on a hot summer day with no air conditioning, struggling to steer, and eventually, a dead battery. A quick glance at the diagram can save you from such predicaments. It's invaluable for:

Replacing a worn or damaged belt: Ensuring you route the new belt correctly.

Troubleshooting accessory issues: Determining if the belt is the culprit.

Installing new accessories: Verifying proper belt length and routing.

General maintenance and inspection: Identifying potential problems before they become major headaches.

Key Specs and Main Parts of the Serpentine Belt System

Before we get into the diagram itself, let's familiarize ourselves with the key components of the serpentine belt system:

Serpentine Belt: A long, continuous belt made of reinforced rubber, designed to wrap around multiple pulleys.

Crankshaft Pulley (Harmonic Balancer): Driven directly by the engine's crankshaft, it's the main power source for the belt.

Idler Pulley(s): Smooth pulleys used to guide the belt and maintain proper tension. They simply spin freely.

Tensioner Pulley: Spring-loaded pulley that automatically maintains the correct tension on the belt. This is critical for proper operation.

Accessory Pulleys: Pulleys attached to the alternator, power steering pump, A/C compressor, and water pump.

Belt Length is a critical spec. The length of the belt is typically specified in millimeters (mm) or inches (in) and varies depending on the engine, model year, and installed accessories. Using the wrong length can cause slippage, noise, and premature wear. Make sure to use the correct belt specified for your truck. Part numbers on the old belt (if available) can be used to identify the correct replacement. Belt Material is another important factor. Most serpentine belts are made from EPDM (ethylene propylene diene monomer) rubber for its heat and wear resistance. However, some high-performance belts use different compounds and reinforcement materials for increased durability and power transfer.

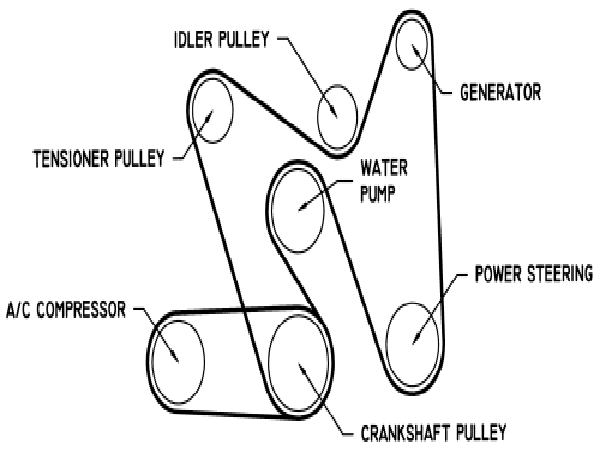

Understanding the Symbols in the Diagram

The serpentine belt diagram might look intimidating at first, but it's simply a visual representation of how the belt is routed around the pulleys. Here's a breakdown of common symbols:

Solid Line: Represents the section of the belt that is in contact with the pulley.

Dotted Line: Indicates the section of the belt on the backside (smooth side) of the pulley. This is how you know the belt is looping *under* the pulley instead of wrapping *around* the grooved side.

Arrows: Indicate the direction of belt travel.

Component Icons: Simplified drawings of each component (alternator, power steering pump, etc.) are labeled clearly.

Tensioner Symbol: A special symbol, often a rectangle with an arrow inside, represents the tensioner pulley. It typically shows the direction the tensioner moves to relieve tension for belt removal or installation.

Colors are sometimes used, but they're not standardized across all diagrams. If your diagram uses colors, there will usually be a legend explaining what each color represents. Typically, different colors might highlight different sections of the belt path or distinguish between drive and driven components.

How the Serpentine Belt System Works

The serpentine belt system is elegantly simple. The crankshaft pulley, driven by the engine, turns the serpentine belt. The belt, in turn, drives all the accessory pulleys. The tensioner pulley maintains constant tension on the belt, preventing slippage and ensuring efficient power transfer. The beauty of the system lies in its single-belt design, which simplifies maintenance and reduces the number of components compared to older multiple-belt systems. However, this also means that a failure of the single belt will disable all accessories.

Real-World Use: Basic Troubleshooting Tips

The serpentine belt diagram is your best friend when troubleshooting belt-related issues. Here are some common problems and how the diagram can help:

Squealing Noise: Often indicates a loose or worn belt. Check the tensioner. Use the diagram to verify the belt is routed correctly and that the tensioner is functioning properly. A misaligned pulley can also cause squealing.

Belt Slippage: Can be caused by a worn belt, a faulty tensioner, or a contaminated pulley (oil or coolant). The diagram helps you identify all the pulleys the belt touches, making it easier to inspect them for damage or contamination.

Accessory Malfunction: If an accessory isn't working (e.g., the A/C compressor isn't engaging), check the belt routing to that specific accessory's pulley. The diagram confirms the belt is correctly engaging the pulley.

Belt Damage: Inspect the belt for cracks, fraying, or missing chunks. Compare the actual belt routing to the diagram to ensure it hasn't been installed incorrectly.

Remember, a visual inspection using the diagram as a reference can often pinpoint the root cause of the problem.

Safety Considerations

Working on the serpentine belt system can be dangerous if you're not careful. Here are some critical safety precautions:

Disconnect the Battery: Before working on any part of the electrical system, including the alternator, disconnect the negative battery cable.

Engine Must Be Off and Cool: Never work on the serpentine belt system with the engine running. Allow the engine to cool completely before starting any repairs.

Avoid Loose Clothing and Jewelry: Keep loose clothing, hair, and jewelry away from moving parts.

Use the Correct Tools: Use the proper tools for releasing the tension on the tensioner pulley. Trying to pry the belt off can damage the pulleys or the belt itself.

Be Aware of Rotating Parts: The crankshaft pulley spins at high speeds. Keep your hands clear when the engine is running (only for diagnostic purposes, of course!).

The Tensioner Pulley is under spring tension and can snap back forcefully when released. Use the correct tools and follow the manufacturer's instructions carefully to avoid injury.

By understanding the serpentine belt diagram and following safe practices, you can confidently tackle many maintenance and repair tasks on your Chevy Silverado. It's a valuable skill that will save you time, money, and potential headaches down the road.

We have a high-resolution serpentine belt diagram specific to many Chevy Silverado models available for download. Understanding the diagram is the first step to mastering this crucial aspect of your truck's engine.
