Dodge Ram 2500 Front Suspension Diagram

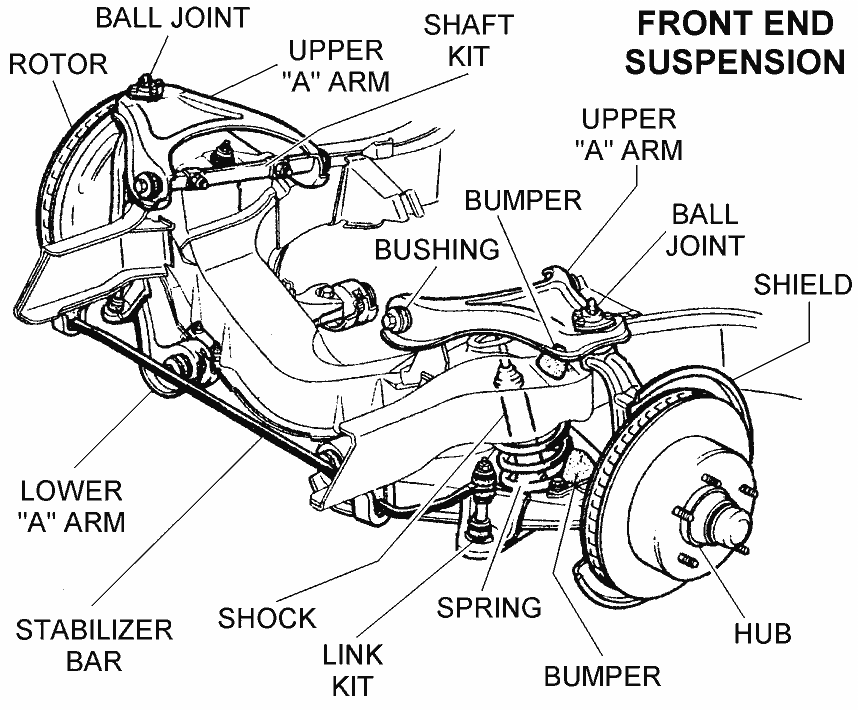

Understanding the front suspension of your Dodge Ram 2500 is crucial for maintenance, repairs, and even performance modifications. A detailed diagram acts as your roadmap, guiding you through the intricate system responsible for ride comfort, handling, and steering. This article dives deep into the Ram 2500's front suspension diagram, explaining its purpose, key components, operational principles, and practical applications. We have the diagram available for download to assist in your endeavors.

Why a Front Suspension Diagram Matters

The diagram isn't just a pretty picture; it's an essential tool for various reasons:

Troubleshooting: When encountering issues like excessive bouncing, uneven tire wear, or steering problems, the diagram helps pinpoint the potential source of the problem.
Repairs: Whether replacing worn-out ball joints or rebuilding the entire front end, the diagram ensures you identify and correctly install each component.
Upgrades and Modifications: Planning to lift your truck, install new shocks, or upgrade to heavier-duty components? The diagram provides a visual reference for compatibility and installation procedures.
Understanding the System: For those simply curious about how their truck works, the diagram provides a clear and organized overview of the entire front suspension assembly.

Key Specs and Main Parts

The Dodge Ram 2500, depending on the year, model, and package, typically uses a solid axle front suspension. This robust design is known for its durability and load-carrying capacity, ideal for heavy-duty applications. Here's a breakdown of the key components:

Main Components:

Solid Front Axle: The heart of the system, connecting the front wheels. It transmits power (in 4x4 models) and provides a mounting point for other suspension components.
Coil Springs: These absorb bumps and provide the primary suspension travel. Their stiffness (spring rate) is crucial for ride quality and load capacity.
Shock Absorbers (Dampers): These control the oscillation of the springs, preventing excessive bouncing and maintaining tire contact with the road.
Radius Arms (Control Arms): These arms connect the axle to the frame, controlling the axle's fore-and-aft movement. Typically two per side.
Track Bar (Panhard Rod): This bar locates the axle laterally, preventing side-to-side movement during cornering. It runs from the axle to the frame on the opposite side.
Steering Linkage: This system translates the driver's steering input into wheel movement. Key components include the steering box (or rack and pinion system depending on model year), pitman arm, drag link, and tie rod ends.
Ball Joints: These spherical bearings allow for movement between the steering knuckle and the axle. They're crucial for steering and suspension articulation.
U-Bolts: These heavy-duty bolts secure the axle to the leaf springs (if equipped, although less common in later 2500 models).
Sway Bar (Stabilizer Bar): This torsion bar connects the two sides of the suspension, reducing body roll during cornering. It's connected to the axle with sway bar links.
Bump Stops: These rubber or polyurethane stops prevent the suspension from bottoming out under extreme compression.

Key Specs to Consider:

Gross Axle Weight Rating (GAWR): The maximum weight the front axle can safely support. This is critical when adding accessories or carrying heavy loads.

Spring Rate: The amount of weight required to compress the spring one inch. Higher spring rates provide greater load capacity but a stiffer ride.

Shock Absorber Damping Force: The resistance the shock absorber provides to movement. This affects ride quality and handling.

Understanding Symbols in the Diagram

A suspension diagram uses standard symbols to represent different components and connections. While specific diagrams may vary slightly, here are some common conventions:

Solid Lines: Typically represent physical components like control arms, axles, and frame members. The thickness of the line might indicate the relative size or strength of the part.
Dashed Lines: Often indicate hidden components or lines of action (e.g., the direction of force).
Circles/Spheres: May represent ball joints or pivot points.
Spring Symbols: A coiled line represents a coil spring.
Hatching: Often used to indicate a cutaway view, showing the internal structure of a component.
Arrows: Indicate the direction of movement or force.
Color Coding: Some diagrams use color to differentiate between different systems (e.g., steering components in blue, suspension components in green). Refer to the diagram's legend for the specific color code.

How It Works: The Mechanics of the System

The front suspension's primary function is to isolate the cab and passengers from road irregularities, providing a smooth and comfortable ride. Here's a simplified explanation of how it works:

Bump Absorption: When a wheel encounters a bump, the coil spring compresses, absorbing the impact.
Damping: The shock absorber restricts the spring's oscillation, preventing excessive bouncing. It does this by forcing hydraulic fluid through small orifices, converting kinetic energy into heat.
Axle Location: The radius arms and track bar work together to keep the axle properly positioned under the truck. The radius arms control fore-and-aft movement, while the track bar prevents lateral movement.
Steering: When the driver turns the steering wheel, the steering box (or rack and pinion) converts the rotational motion into linear motion. This motion is transferred through the pitman arm, drag link, and tie rod ends to the steering knuckles, which pivot the wheels.
Sway Bar Action: During cornering, the sway bar resists body roll by transferring force from one side of the suspension to the other. This helps to keep the truck level and improves handling.

Real-World Use: Basic Troubleshooting

Here are some common symptoms and potential causes, using the diagram as a reference:

Excessive Bouncing: Worn-out shock absorbers are the most likely culprit. Inspect them for leaks or signs of damage. Check the diagram to ensure you're replacing them with the correct type.
Uneven Tire Wear: This could indicate a problem with alignment, worn ball joints, or bent suspension components. Use the diagram to check the condition of the ball joints and control arms.
Steering Play: Loose steering linkage components (tie rod ends, pitman arm) or a worn steering box could be the cause. Visually inspect these components using the diagram as a guide.
Clunking Noises: Could be caused by worn ball joints, loose sway bar links, or worn control arm bushings. Refer to the diagram to locate and inspect these components.
Wandering Steering: This could indicate a problem with the track bar, loose steering components, or improper alignment. Inspect the track bar bushings and mounting points for wear or damage.

Safety Considerations

Working on the front suspension can be dangerous. Here's what to keep in mind:

Spring Compression: Coil springs store a tremendous amount of energy. Never attempt to disassemble or remove a coil spring without using a proper spring compressor. Improper handling can result in serious injury or death.
Jacking and Support: Always use jack stands to support the vehicle after lifting it with a jack. Never work under a vehicle supported only by a jack.
Torque Specifications: Always tighten fasteners to the manufacturer's specified torque. Overtightening can damage components, while undertightening can lead to failure. Refer to your service manual for torque specifications.
Wheel Alignment: After performing any significant suspension work, it's essential to have the wheel alignment checked and adjusted by a qualified technician.
Brake Lines: Be extremely careful when working around brake lines. Damaging a brake line can result in complete brake failure.

By understanding the principles and components of the Dodge Ram 2500 front suspension, you'll be better equipped to diagnose problems, perform repairs, and maintain your truck's performance and safety. Remember to always consult your service manual for specific instructions and safety precautions. We have the detailed front suspension diagram readily available for download to help you navigate your Ram 2500's suspension system. Good luck with your repairs!
