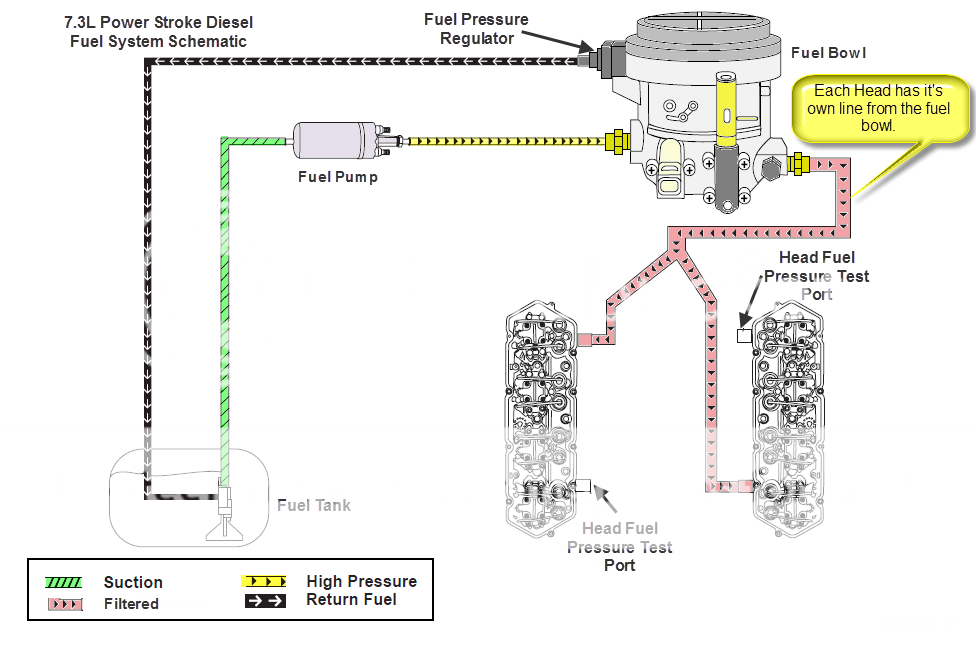

Fuel System 7.3 Powerstroke Fuel Line Diagram

If you own a 7.3L Powerstroke, understanding its fuel system is crucial for maintenance, troubleshooting, and even performance upgrades. A clear fuel line diagram is your roadmap, and this article will guide you through it. We'll break down the components, explain how it works, and provide practical troubleshooting tips. Knowing your fuel system inside and out empowers you to tackle repairs and modifications with confidence. What's more, we have a downloadable version of the fuel line diagram specifically for the 7.3L Powerstroke ready for you!

Purpose of the 7.3L Powerstroke Fuel Line Diagram

The fuel line diagram serves several vital purposes. Primarily, it's essential for:

Repair and Maintenance: Quickly identifying the location of components like fuel filters, fuel pumps, and fuel pressure regulators makes diagnosing and repairing fuel system problems faster and more efficient.
Troubleshooting: Tracing fuel lines helps pinpoint leaks, blockages, or pressure drops that can cause poor performance, starting issues, or even engine damage.
Modifications and Upgrades: Planning and executing fuel system modifications, such as installing aftermarket fuel pumps or injectors, requires a thorough understanding of the existing fuel line layout.
Learning and Understanding: Familiarizing yourself with the fuel system layout is invaluable for understanding how the engine operates and how fuel delivery impacts performance.

Key Specs and Main Parts of the 7.3L Fuel System

The 7.3L Powerstroke utilizes a high-pressure oil system (HEUI – Hydraulically actuated Electronically controlled Unit Injector) to inject fuel. This means the fuel system itself is relatively "simple" compared to newer common-rail diesel systems, though maintaining high fuel pressure is still vital. Here’s a breakdown of the main components:

Fuel Tank: Stores the diesel fuel. Often includes a fuel sending unit for the fuel gauge.
Fuel Pump: Typically located on the engine, driven either mechanically or electrically. It draws fuel from the tank and supplies it to the fuel filter. The 7.3L mostly used a mechanical fuel pump. Upgrading to an electric fuel pump is a common and recommended modification.
Fuel Filter(s): Removes contaminants from the fuel before it reaches the injectors. The 7.3L typically has at least one fuel filter, often with a pre-filter. Keeping these clean is critical for injector life.
Fuel Pressure Regulator: Maintains a consistent fuel pressure to the fuel injectors. Located either on the fuel bowl or in the return line. A stable fuel pressure is critical for proper engine performance.
Fuel Bowl: A reservoir located on top of the engine (pre-1999.5 models primarily) where fuel is filtered and supplied to the injectors. It often houses the fuel pressure regulator and a water-in-fuel (WIF) sensor.
Fuel Injectors: Inject fuel into the combustion chamber. The 7.3L uses HEUI injectors, which are hydraulically actuated by high-pressure oil.
Fuel Lines: Steel or flexible lines that connect all the fuel system components.
Fuel Return Line: Returns excess fuel from the fuel pressure regulator back to the fuel tank.

Understanding Fuel Line Diagram Symbols

Fuel line diagrams use standardized symbols to represent different components and fuel lines. Here’s a breakdown of common symbols:

Solid Lines: Typically represent the main fuel lines carrying pressurized fuel.
Dashed Lines: Often indicate return lines, vent lines, or vacuum lines.
Arrows: Indicate the direction of fuel flow.
Specific Shapes: Represent specific components like fuel pumps, filters, regulators, and injectors. Refer to the specific diagram's legend for a comprehensive list. A square might represent the fuel filter, a circle could be the fuel pump, and so on.
Color Coding: Some diagrams use color coding to differentiate between supply and return lines. For example, blue might represent supply, and red might represent return.

Always refer to the legend on the specific diagram you are using. Never assume the meaning of a symbol.

How the 7.3L Fuel System Works

The 7.3L Powerstroke fuel system operates in the following manner:

The fuel pump draws fuel from the fuel tank.
The fuel passes through the fuel filter(s) to remove contaminants.
The fuel pressure regulator maintains a constant fuel pressure (typically around 50-65 PSI). Excess fuel is returned to the fuel tank via the return line.
The regulated fuel is supplied to the fuel bowl (on models equipped with a fuel bowl).
The HEUI injectors receive fuel from the fuel bowl (or directly from the fuel rails on later models) and use high-pressure oil to inject the fuel into the cylinders.

Crucially, the 7.3L relies on high-pressure oil (generated by the high-pressure oil pump, or HPOP) to actuate the injectors. The fuel system primarily provides a reservoir of fuel at the correct pressure for the injectors to utilize. Insufficient fuel pressure can lead to poor performance, hard starting, and even injector damage.

Real-World Use: Basic Troubleshooting Tips

Here are some basic troubleshooting tips using the fuel line diagram:

Low Fuel Pressure: Use the diagram to locate the fuel pressure regulator and fuel filter. Check the fuel filter for clogs. A clogged filter is a common cause of low fuel pressure. Use a fuel pressure gauge to verify the fuel pressure at the fuel bowl or fuel rails. If the pressure is low, suspect the fuel pump, fuel filter, or fuel pressure regulator.
Fuel Leaks: Visually inspect all fuel lines and connections, following the diagram. Pay close attention to areas near the fuel pump, fuel filter, and fuel bowl. Look for signs of fuel leaks, such as dampness or fuel stains.
Hard Starting: If the engine is hard to start, check the fuel supply to the injectors. Use the diagram to locate the fuel bowl (if equipped) and check for air bubbles. Air in the fuel system can prevent the engine from starting. A failing fuel pump or a leak in the fuel suction line can cause air to enter the system.
Poor Performance: Poor engine performance, such as lack of power or hesitation, can be caused by insufficient fuel delivery. Check the fuel pressure and fuel filter. Also, consider testing the fuel injectors.

Safety Considerations

Working on the fuel system can be dangerous due to the flammability of diesel fuel. Here are some safety precautions:

Disconnect the Battery: Always disconnect the negative battery cable before working on the fuel system to prevent accidental sparks.
Work in a Well-Ventilated Area: Diesel fuel fumes are harmful. Work in a well-ventilated area to avoid inhaling fumes.
Wear Safety Glasses and Gloves: Protect your eyes and skin from fuel splashes.
Have a Fire Extinguisher Nearby: Keep a fire extinguisher readily available in case of a fuel spill or fire.
Be Careful When Disconnecting Fuel Lines: Fuel lines can be pressurized. Be prepared for fuel to spray out when disconnecting them. Wrap a rag around the connection to absorb any fuel.
Proper Disposal: Dispose of used fuel filters and rags properly according to local regulations.
Specifically, the High Pressure Oil system of the 7.3L Powerstroke can be extremely dangerous. Do not attempt to disassemble the HPOP or lines without specific training. The high pressure can cause serious injury.

Always exercise caution and prioritize safety when working on the fuel system. If you are not comfortable performing a particular task, seek professional assistance.

With this knowledge and the fuel line diagram, you’ll be well-equipped to tackle common 7.3L Powerstroke fuel system issues. Remember, a well-maintained fuel system is crucial for optimal engine performance and longevity. We have that diagram available for you to download, giving you a clear visual aid for your repairs and modifications!
