Toyota Tundra 5.7 Serpentine Belt Diagram

Alright, let's talk about the serpentine belt diagram for your Toyota Tundra with the 5.7L engine. This isn't just some random schematic; it's your lifeline when dealing with anything from a simple belt replacement to diagnosing a more complex issue with your truck's accessories. Whether you're a seasoned DIYer looking to save some cash or simply want a better understanding of your vehicle, knowing how to read and use this diagram is invaluable. We'll break down the key components, symbols, and troubleshooting steps to get you confident in tackling this task. Plus, we've got the actual diagram file available for download – more on that later.

Why This Serpentine Belt Diagram Matters

The serpentine belt is a single, continuous belt that snakes around multiple pulleys to drive essential components of your engine. These components include:

Alternator: Charges the battery and powers the electrical system.
Power Steering Pump: Provides hydraulic assistance for steering.
Air Conditioning Compressor: Cools the cabin air.
Water Pump: Circulates coolant to prevent overheating.

A failing serpentine belt can lead to a cascade of problems. Imagine losing power steering while navigating a tight turn, or worse, your engine overheating because the water pump stops circulating coolant. Understanding the serpentine belt system and having access to the correct diagram allows you to:

Perform routine maintenance: Inspecting and replacing the belt before it fails can prevent breakdowns.
Diagnose issues: Identifying the source of squealing noises, accessory failures, or battery charging problems.
Replace components: Properly routing the belt after replacing an alternator, power steering pump, or other driven component.
Gain a deeper understanding: Learning how your engine accessories function and how they're interconnected.

Key Specs and Main Parts

Before diving into the diagram itself, let's familiarize ourselves with the critical parts involved:

Serpentine Belt: The main rubber belt made with fiber reinforcement. It is crucial to know the exact belt length and specifications for the 5.7L Tundra. Look for markings on the belt or refer to your owner's manual. Using the wrong belt can lead to improper tension and premature failure.
Crankshaft Pulley (Harmonic Balancer): This is the large pulley at the bottom of the engine, driven directly by the crankshaft. It provides the rotational force for the entire serpentine belt system.
Alternator Pulley: Driven by the serpentine belt to spin the alternator and generate electricity.
Power Steering Pump Pulley: Driven by the serpentine belt to power the hydraulic system for the steering.
A/C Compressor Pulley: Driven by the serpentine belt to compress refrigerant for the air conditioning system.
Water Pump Pulley: Driven by the serpentine belt to circulate coolant through the engine and radiator.
Tensioner Pulley: A spring-loaded pulley that maintains the correct tension on the serpentine belt. This is crucial for proper operation and belt life. The 5.7L Tundra uses an automatic tensioner.
Idler Pulley: A smooth pulley that guides the belt around the engine and prevents it from contacting other components. It may not directly drive any accessories.

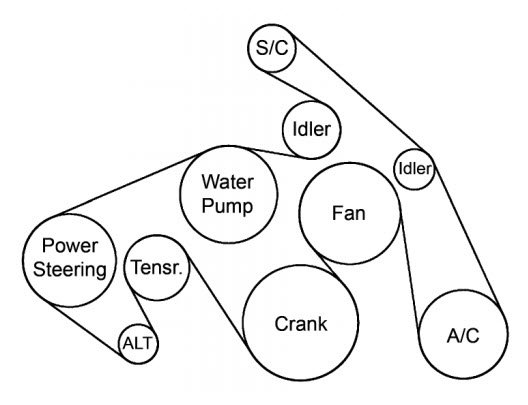

Decoding the Serpentine Belt Diagram: Symbols and Lines

A serpentine belt diagram isn't just a random drawing. It's a standardized representation of the belt routing. Here's how to interpret the symbols:

Solid Lines: Indicate the path of the serpentine belt. Follow these lines carefully to ensure the belt is routed correctly.
Arrows: Show the direction of rotation for each pulley. This is important because some accessories require a specific rotational direction.
Component Symbols: Simplified drawings of each component (alternator, power steering pump, etc.). These are usually labeled with abbreviations or full names.
Tensioner Symbol: Often depicted with a spring or arrow indicating the direction of tension. Understanding the tensioner location and function is crucial for belt replacement.
Idler Pulley Symbol: Usually represented as a plain pulley, labeled "Idler".

Color coding is sometimes used, but it's less common in these diagrams. If colors are present, a legend will explain what each color represents (e.g., blue for belt path, red for tensioner movement).

How the Serpentine Belt System Works

The 5.7L Tundra's serpentine belt system is a marvel of efficiency. The crankshaft provides the initial rotational force. This force is transmitted to the serpentine belt via the crankshaft pulley. The belt then wraps around each of the accessory pulleys, transferring rotational energy to drive them. The tensioner pulley keeps the belt taut, preventing slippage and ensuring proper operation. The idler pulley guides the belt around obstacles, maintaining the correct routing.

Think of it like a complex chain reaction. The crankshaft starts the process, and the serpentine belt acts as the messenger, delivering power to all the necessary accessories. If the belt is too loose, it will slip, resulting in reduced accessory performance. If the belt is too tight, it can put excessive stress on the pulleys and bearings, leading to premature failure.

Real-World Use: Basic Troubleshooting Tips

Here are some common issues related to the serpentine belt and how the diagram can help you diagnose them:

Squealing Noise: A common symptom of a loose or worn serpentine belt. Check the tensioner pulley to ensure it's functioning correctly. Inspect the belt for cracks, glazing, or missing chunks. The diagram will show you the correct belt routing and tensioner location.
Accessory Failure: If your alternator, power steering, or A/C isn't working, the serpentine belt could be the culprit. Check the belt for breaks or slippage. Use the diagram to trace the belt's path and identify which accessory is affected.
Battery Charging Problems: A loose or slipping serpentine belt can prevent the alternator from charging the battery properly. Check the belt tension and condition. The diagram will confirm the belt is properly routed around the alternator pulley.
Overheating: If the water pump isn't circulating coolant, your engine can overheat. Check the serpentine belt to ensure it's driving the water pump pulley. The diagram will verify the correct routing.

Before replacing the serpentine belt, take a picture or draw a diagram of the existing belt routing. This will serve as a reference during the installation process. And always double-check the new belt's routing against the official diagram.

Safety First: Highlight Risky Components

Working on the serpentine belt system involves some inherent risks. Keep these safety precautions in mind:

Disconnect the Battery: Before working on any electrical components (like the alternator), disconnect the negative battery cable to prevent accidental shorts.
Hot Engine: Never work on the serpentine belt system when the engine is hot. Allow the engine to cool completely before starting any repairs.
Moving Parts: Keep your hands, clothing, and tools away from moving parts. Even with the engine off, the serpentine belt can snap back with considerable force if the tensioner is released improperly.
Tensioner Release: The tensioner pulley is under spring tension. Use the correct tool (usually a wrench or socket) to carefully release the tension before removing the belt. Avoid using makeshift tools, as they can slip and cause injury. Always wear safety glasses to protect your eyes.

Remember: if you are uncomfortable working on your vehicle, it's always best to consult with a qualified mechanic.

Get Your Diagram Here!

Now that you understand the importance of the serpentine belt diagram for your 5.7L Toyota Tundra, you’ll want the real thing. We have the full, high-resolution diagram available for download. This will be a valuable resource for future maintenance, repairs, and upgrades. With this diagram in hand, you'll be well-equipped to tackle your serpentine belt system with confidence.
