Troy Bilt Zero Turn Drive Belt Diagram

Maintaining your Troy-Bilt zero turn mower means understanding its inner workings. One of the most crucial, and often overlooked, components is the drive belt system. This article will delve into the drive belt diagram, explaining its purpose, key components, functionality, and how to use it for troubleshooting and maintenance. We’re assuming you're a seasoned DIYer, comfortable with basic mechanical tasks, and ready to tackle a deeper understanding of your mower.

Purpose of the Troy-Bilt Zero Turn Drive Belt Diagram

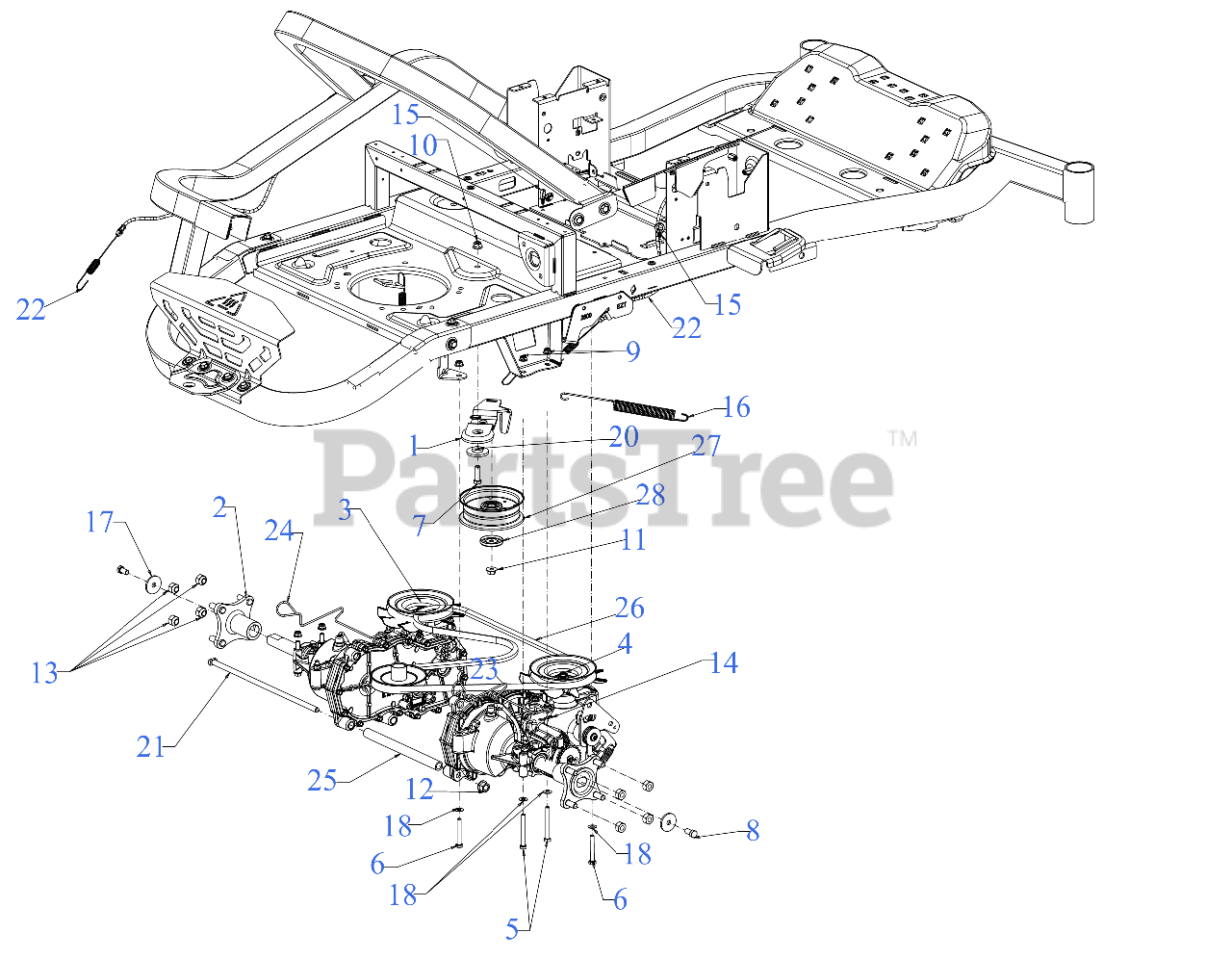

The drive belt diagram is essentially a roadmap of the drive system within your Troy-Bilt zero turn mower. Its primary purposes are:

Repair and Maintenance: The diagram is indispensable when replacing a worn or broken drive belt. It shows the correct routing path, ensuring the new belt is installed properly.
Troubleshooting: Identifying the correct belt path and understanding how the system is supposed to function is vital for diagnosing issues like slipping belts, reduced power, or complete loss of drive.
Part Identification: The diagram helps you identify the different pulleys, idlers, and other components within the drive system, allowing you to order the correct replacement parts.
Understanding the System: Even without immediate problems, studying the diagram provides a deeper understanding of how your mower transmits power from the engine to the wheels.

Key Specs and Main Parts

A typical Troy-Bilt zero turn drive system consists of several key components, all meticulously illustrated in the diagram. Let's break them down:

Engine Pulley: This is the starting point. Connected directly to the engine's crankshaft, it receives rotational power from the engine.
Drive Belt(s): Usually, zero-turn mowers use multiple belts. This belt(s) transfer power from the engine pulley to the transmission pulleys. The belt’s length, width, and angle are crucial specifications.
Transmission Pulleys (Hydrostatic Pumps): These pulleys are attached to the hydrostatic pumps, which control the speed and direction of each wheel independently. This is what allows for the zero-turn capability. Often there will be separate pulleys and pumps for each wheel.
Idler Pulleys: These pulleys are not directly connected to any driven component. They serve two main functions: to maintain proper belt tension and to guide the belt around obstacles or through tight spaces. Some are spring-loaded to provide automatic tensioning.
Tension Spring(s): The spring connected to the idler pulley is critical. It applies consistent tension to the belt, preventing slippage and ensuring efficient power transfer. The spring's tension must be within the manufacturer's specification.
Belt Guides/Keepers: These are small metal brackets that prevent the belt from jumping off the pulleys, especially during sudden starts, stops, or when traversing uneven terrain.
Hydrostatic Transmissions (Pumps): Though not directly part of the belt system, the diagram shows the relationship between the drive belt and the hydrostatic transmission. Understanding how the belt drives the transmission is fundamental.

Diagram Symbols: Understanding the Visual Language

The diagram uses a visual language to represent the components and their relationships. Here’s a breakdown of common symbols:

Solid Lines: Represent the drive belts themselves. The thickness of the line might indicate belt width (though this isn't always consistent).
Dashed Lines: Often used to indicate the belt's path behind other components, showing that it's hidden from direct view.
Circles: Represent pulleys. They may be labeled with sizes (diameter) or part numbers.
Arrows: Indicate the direction of belt travel.
Icons: Small icons might represent specific components like tension springs or belt guides. The legend of the diagram will describe these icons.
Color Coding: Sometimes, diagrams use color coding to distinguish between different belts or to highlight specific features. The color key is usually provided alongside the diagram.

Pay close attention to the legend or key provided with the diagram. It explains the meaning of each symbol and notation, ensuring you interpret the diagram correctly.

How the Drive Belt System Works

The drive belt system works by transmitting rotational force from the engine to the hydrostatic transmissions. Here's a simplified explanation:

The engine's crankshaft rotates the engine pulley.
The drive belt, wrapped around the engine pulley, is set in motion.
The rotating belt then drives the transmission pulleys, which are connected to the hydrostatic pumps.
The hydrostatic pumps generate hydraulic pressure, which is used to drive hydraulic motors connected to the wheels.
The movement of the hydraulic motors turns the wheels, propelling the mower forward or backward.
The idler pulleys maintain tension on the belt, preventing slippage and ensuring efficient power transfer. The tension spring attached to the idler pulley is crucial for this function.

The zero-turn capability comes from the independent control of each wheel's speed and direction via the hydrostatic transmissions. By varying the hydraulic pressure to each wheel, the mower can turn sharply or even rotate in place.

Real-World Use: Troubleshooting with the Diagram

The drive belt diagram is invaluable when troubleshooting drive system problems. Here are some common issues and how the diagram can help:

Belt Slippage: If the belt is slipping, the diagram helps you check the belt's routing path, tension, and condition. A misrouted belt, a worn belt, or a weak tension spring can cause slippage. Ensure the belt is properly seated on all pulleys and that the tension spring provides adequate force.
Belt Breakage: If the belt breaks, the diagram is essential for identifying the correct replacement belt and for ensuring it's routed correctly. Look for signs of wear or damage on the pulleys that might have contributed to the breakage.
Reduced Power: If the mower lacks power, the diagram helps you check the entire drive system for potential problems. A loose belt, a worn pulley, or a malfunctioning tension spring can all reduce power.
Uneven Drive: If one wheel spins faster than the other, it could indicate a problem with the hydrostatic transmission on that side. While the diagram doesn't directly diagnose transmission issues, it helps you confirm that the belt is properly driving that transmission's pulley.

When troubleshooting, always refer to the diagram to ensure you're checking the correct components and that they're functioning as intended.

Safety Precautions

Working on the drive belt system involves inherent risks. Observe these safety precautions:

Disconnect the Spark Plug: Before working on any part of the mower, disconnect the spark plug wire to prevent accidental starting. This is a crucial safety step.
Wear Safety Glasses: Protect your eyes from debris.
Use Gloves: Protect your hands from sharp edges and hot components.
Hot Components: The engine and exhaust system can get extremely hot. Allow them to cool completely before working on the drive belt system.
Spring Tension: Be extremely careful when working with tension springs. They can release suddenly and cause serious injury. Use appropriate tools to safely relieve tension before removing or adjusting the spring.
Moving Parts: Never attempt to adjust or repair the drive belt system while the engine is running. Moving belts and pulleys can cause severe injury.
Proper Lifting Techniques: If you need to lift the mower, use proper lifting techniques and equipment to avoid back injuries.

Always prioritize safety when working on your mower. If you're uncomfortable with any aspect of the repair, consult a qualified mechanic.

We understand having the right information is key to getting the job done right. To help you with your maintenance needs, we have the Troy-Bilt zero turn drive belt diagram available for download. With the diagram in hand, along with the information in this article, you’ll be better prepared to tackle any drive belt related issues on your zero turn mower.
